EnvisionTEC Micro Plus Advantage

High Quality Precision Printer

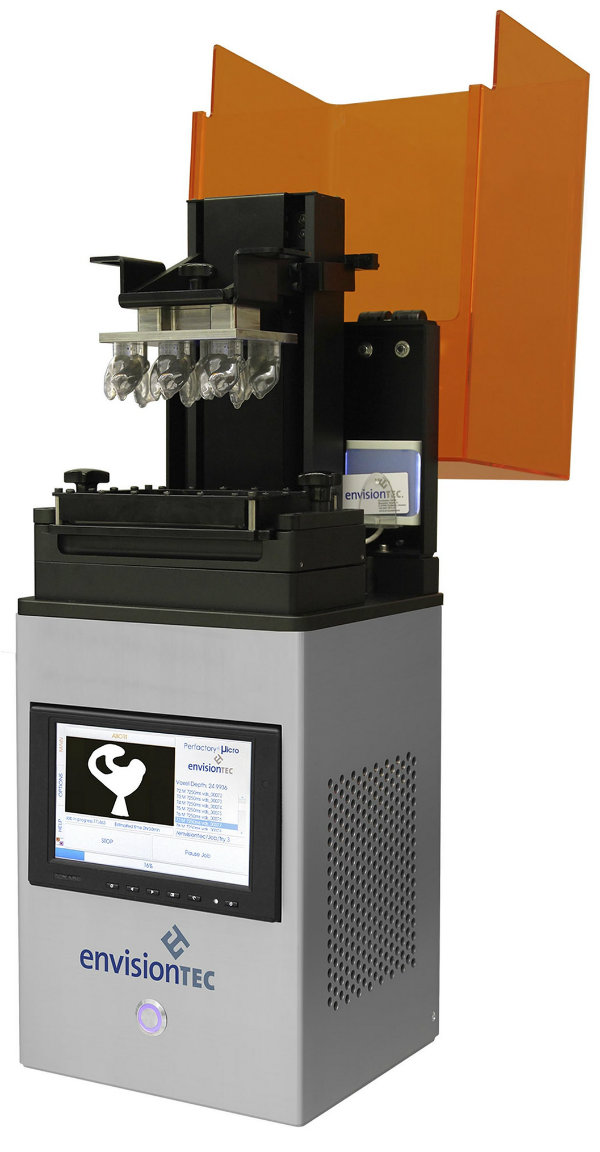

The Micro Plus Advantage 3D printer from EnvisionTEC is an incredibly good professional grade desktop 3D printer that uses the advanced DLP (digital light processing) technology. This printer is the outcome of EnvisionTEC’s research and innovation in 3D print technology.

The Micro Plus Advantage is perfect for printing small components with great precision, making it a great fit for the jewellery and medical sector. It has an industrial UV LED light source and an integrated PC. This 3D Printer gives a print output that is reliable, accurate and has a smooth finish that minimizes post processing.

Product Features

Easy To Use

Extremely easy to set up and operate. It has a touchscreen and an integrated embedded PC with Wi-Fi and can function as a standalone system. Files for printing can be transferred to the printer from any network computer over Wi-Fi

Reliability

Robust build with very few moving parts, making it a strong and reliable production system

Quick Changeover

Capable of printing with a range of materials and changeover between materials is quick and hassle-free with minimal waste

Accuracy With Speed

Prints with a resolution of down to 60 microns, making it one of the most accurate and speedy 3D printers in its class

Key Benefits & Applications

EnvisionTEC’s Micro Plus Advantage printer can print small, intricate functional parts quickly, and with good surface quality. It can print with a range of materials, making it perfect for a multitude of 3D applications, including jewellery, medical, toys, industrial design and more. Its print output is highly accurate, and can used for micro-pave or invisible settings.

The Micro Plus Advantage is the printer of choice in 3D printed jewellery and jewellery model making because of its precision and ability to print high-wax content direct cast materials. The printer can use a wide range of tailored resins such as ABS Flex M Series, EC500M, QView M and others with incredible speed and superior surface quality.

EnvisionTEC’s printers are small format desktop printers with extremely high resolution and these printers are perfect for industries that require small volume prints with high resolution, like the medical devices sector and jewellery manufacturing.

Watch video about EnvisionTEC’s product offerings at the MJSA Expo

Buy EnvisionTEC’s Micro Plus Advantage. Desktop companion for high quality precision applications.

ENQUIRE NOW

Printer Usage & Operation

This is a plug and play printer with an easy to use, intuitive software interface. It features a dynamic Z resolution (material dependent) that ranges between 25 and 75 micron. It has a build envelope of 60 x 45 x 100 mm and a resolution of 60mm in the X and Y axes.

The Micro Plus Advantage can build an impressive 10-12 average ring sizes in a 5-8 hour build time. The printer has an industrial grade UV LED DLP light source which is long lasting and low maintenance. This printer is perfect for small and medium sized businesses to produce small components with high precision.

Technical Specifications

Footprint (L x W x H): 9” x 9.5” x 25” (22.86 x 24.13 x 63.5 cm)
Weight: 35 lbs (16 kg)
Data Handling: STL
Warranty:1 year
Build Envelope: 2.56” x 1.58 x 3.94” (65 x 40 x 100 mm)
Native Pixel Size: 0.0024” (60 μm)
Dynamic Voxel Resolution in Z**: 0.001” – 0.003″ (25 – 75 μm)

Materials:
ABS Flex M
EC500 M
EC3000 M
HTM140 M
RC70/90 M
Q-View M

Precision 3D Printing in Singapore

The Micro Plus Advantage printer from EnvisionTEC, with its great precision and incredible resolution, is poised to be a game changer in Singapore. Its ability to print a variety of materials makes it versatile and its affordability brings professional grade 3D prints to all.

Well suited for Singapore SMEs and small businesses serving customers in the Entertainment, Jewellery, Consumer Goods, Education and Medical Devices niche. 3D Bots is proud to bring professional grade 3D machines like the Micro Plus in Singapore & Malaysia with onsite support.
